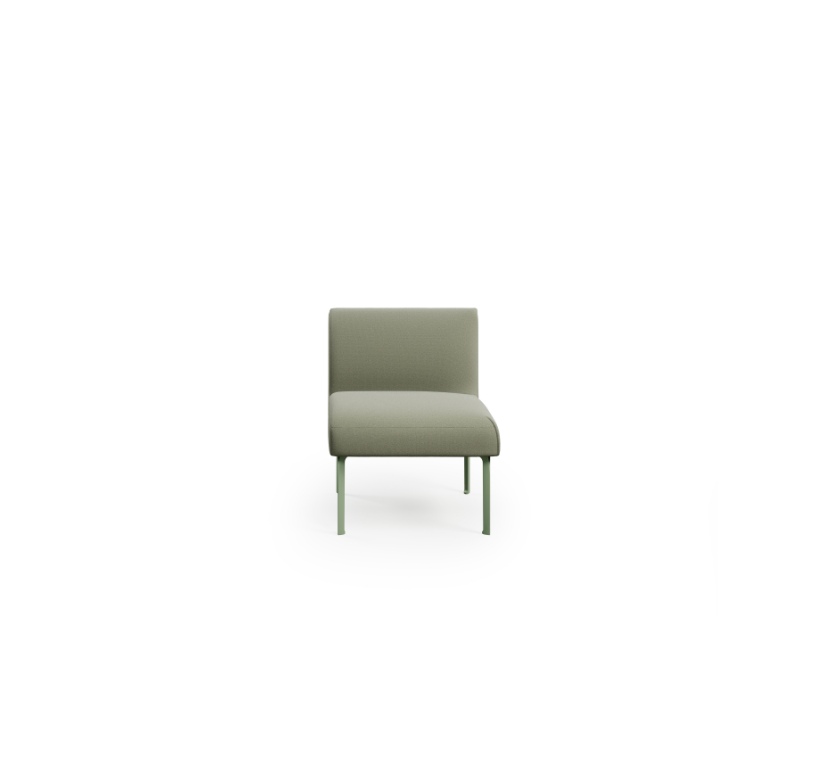

Profim Lunea U31

A left armless end module, scalable from +10 cm to +80 cm in 10 cm increments, designed to start a selected Lunea modular sofa configuration. It can be used as a standalone module or as part of a larger arrangement, combined with U11, U21, U22, U32, U41, U42, U51 or U52 modules.

Choose your model

Armless end left

Specification

Product version U31

Sofa armless end left, upholstered seat and backrest, metal legs

Frame

Cast aluminium leg.

Height: 306 mm.

Available powder-coated or polished aluminium.

Triangular cross-section profile, 27 mm thick.

Colour options:

MetallicPro
Black RAL 9005
White RAL 9016
Light Grey
Grey
Deep Green RAL 6004
Navy Blue RAL 5003
Burgundy RAL 3005
Salvia/Green RAL 6021
Blue RAL 5014
Terracota RAL 3012
Polished Aluminium

Glides

Polipropylen, adjustable glides:

Teflon — universal (set)
Felt — for hard floors (set)

Seat

Fully upholstered.

Dymetrol seat support system.

Cut foam HR 44 kg /m3.

Fire-retardant foam options available (1IM, Paper cushion/dufelt).

Backrest

Fully upholstered.

Foam 35 kg / m3.

Fire-retardant foam options available (1IM, Paper cushion/dufelt).

Armrests

No armrests, armless end left.

Net weight

16 kg

Gross weight

20,5 kg

Extension

Seat width extensions available:

+10 cm → total width 74 cm
+20 cm → total width 84 cm
+30 cm → total width 94 cm
+40 cm → total width 105 cm
+50 cm → total width 115 cm
+60 cm → total width 125 cm
+70 cm → total width 135 cm
+80 cm → total width 145 cm

Versions from +50 cm feature additional stitching at centre of seat and backrest.

Additional devices

Mediaport (power access) — housing always black.
Table available in all frame colours except polished aluminium, playwood table top.
Mediaport and table share the same mounting point (centred under front edge of seat).
Mediaport and table can be used simultaneously.
